3.5 Inch Gauge Telford Steam Tram (Electric Powered)
This model represents a Telford steam tram designed for 3½-inch gauge
garden railway operation, built with precision-engineered steel components.
While it visually resembles a traditional steam tram, it is powered by
an electric motor (MY1016Z3 recommended) mounted securely within a
custom-designed motor mount.

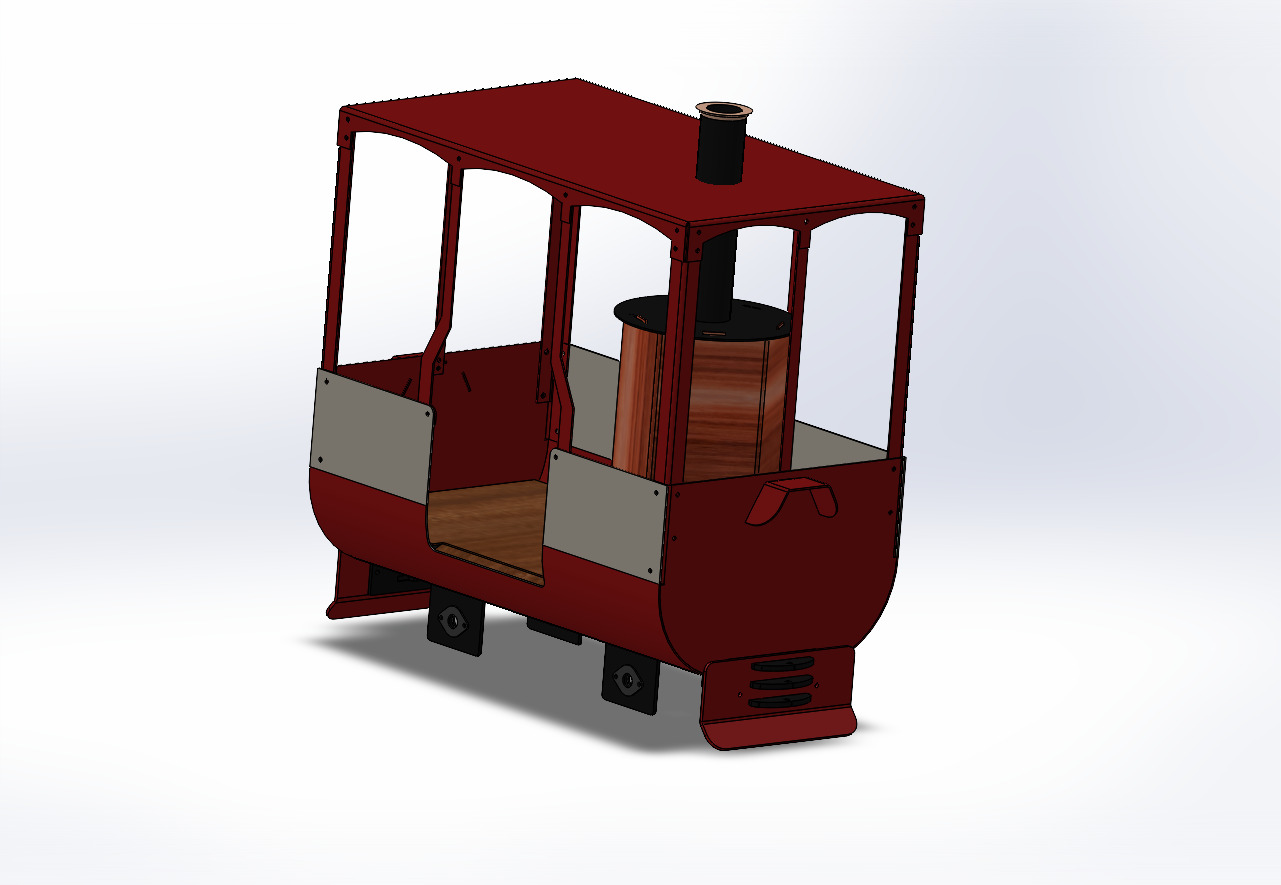

Design Overview
The tram features a symmetrical layout with buffer beams at both ends,
allowing bidirectional operation. Its structure is modular, with each part
contributing to the overall rigidity, realism, and functionality of the model.
Main Components
�Chassis The foundational steel frame that supports all other
components. use 6701-2RS Deep Groove Ball Bearings, Z2 12mm x
18mm x 4mm for axles.

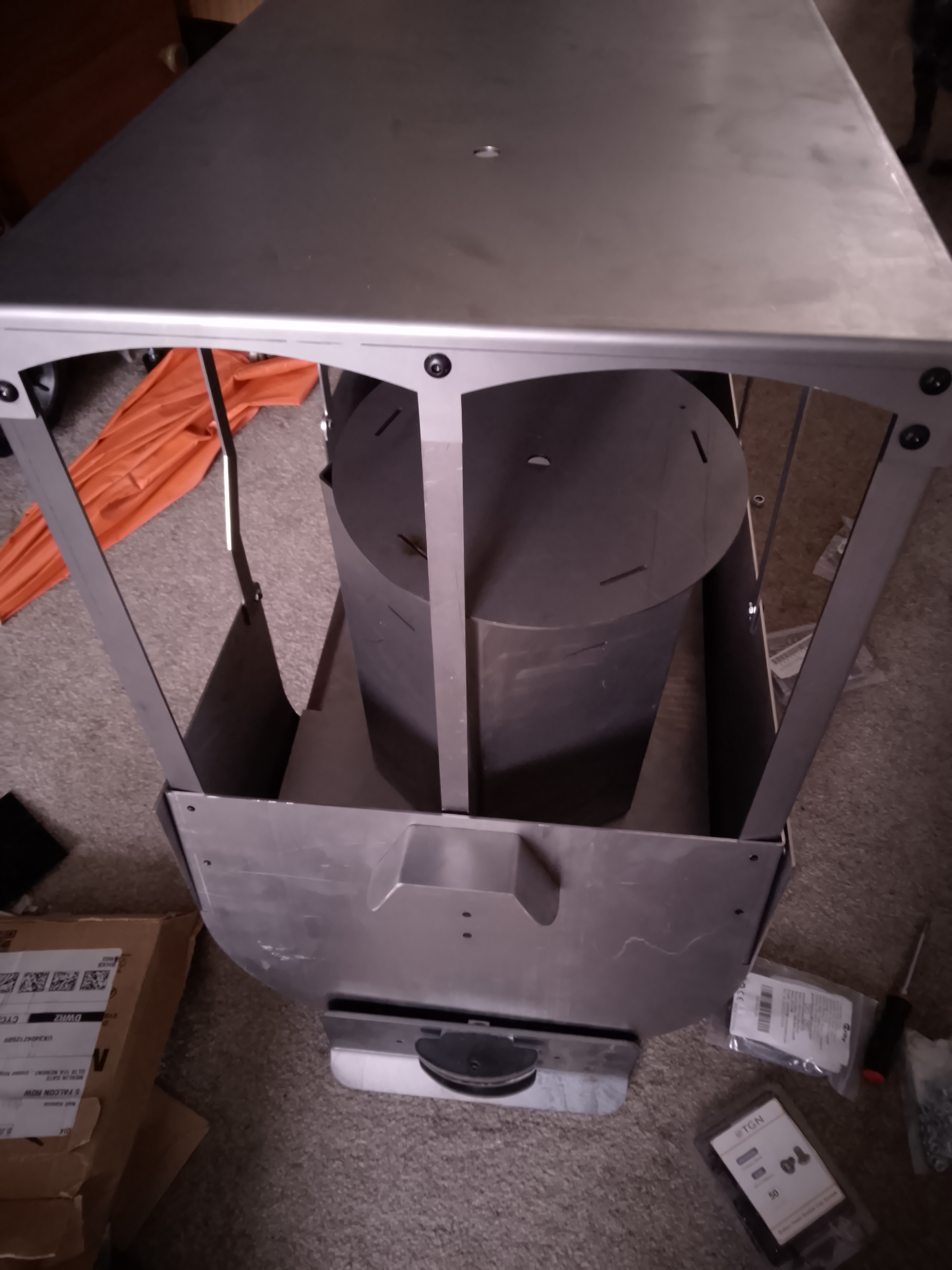

� Body A full-sided enclosure that gives the tram its distinctive shape
and houses internal systems.
�Roof & Roof Support: A flat roof panel supported by brackets,
completing the tram’s silhouette.

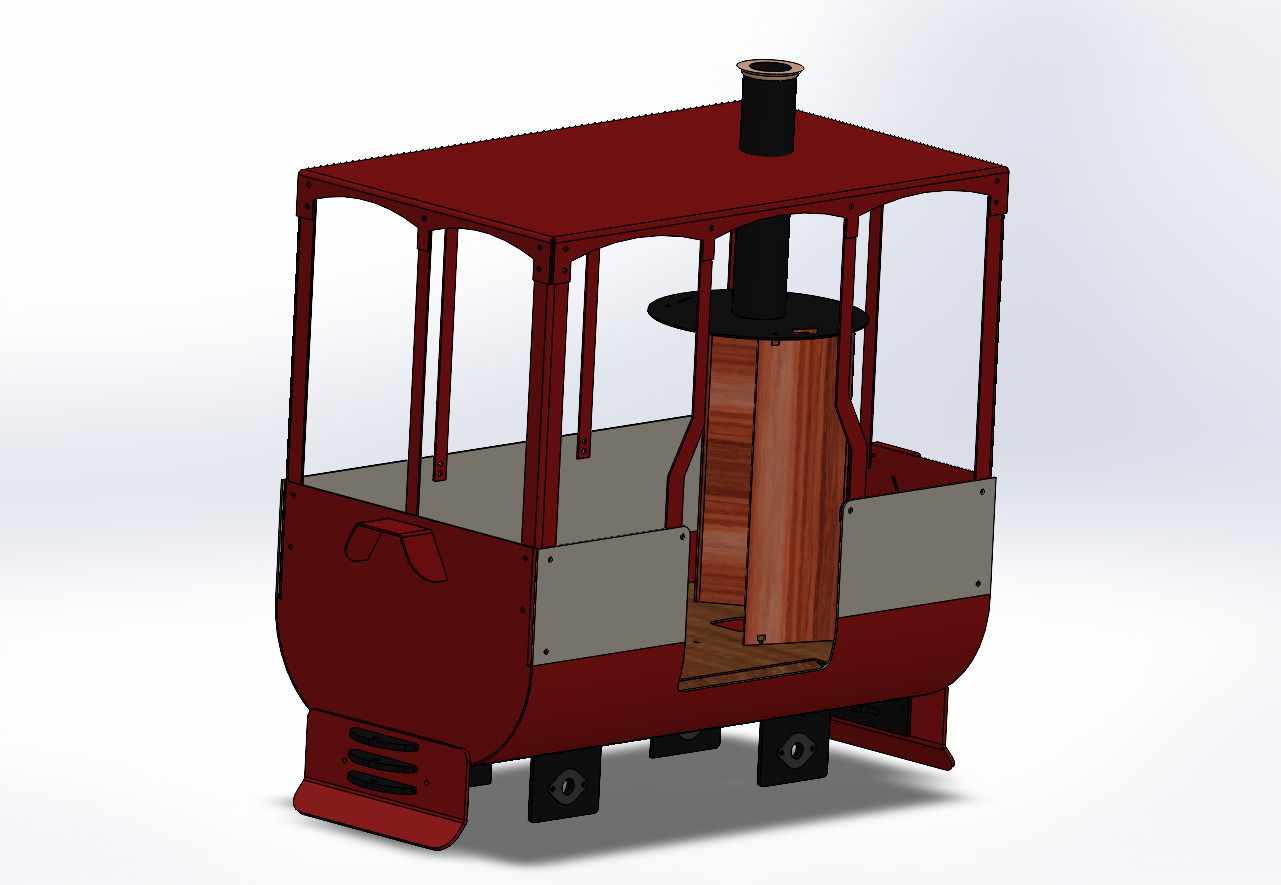

� Fake Boiler & Boiler Top: These simulate the appearance of a steam
boiler, preserving the tram’s historical look while providing space for
electronics.
�Motor Mount The electric motor is housed here, providing propulsion
to the tram.
� Buffer Beam & Buffer Pins: Located at both ends, these allow
coupling and add realism.
� Front/Rear Panels: Identical structural panels at each end of the tram.

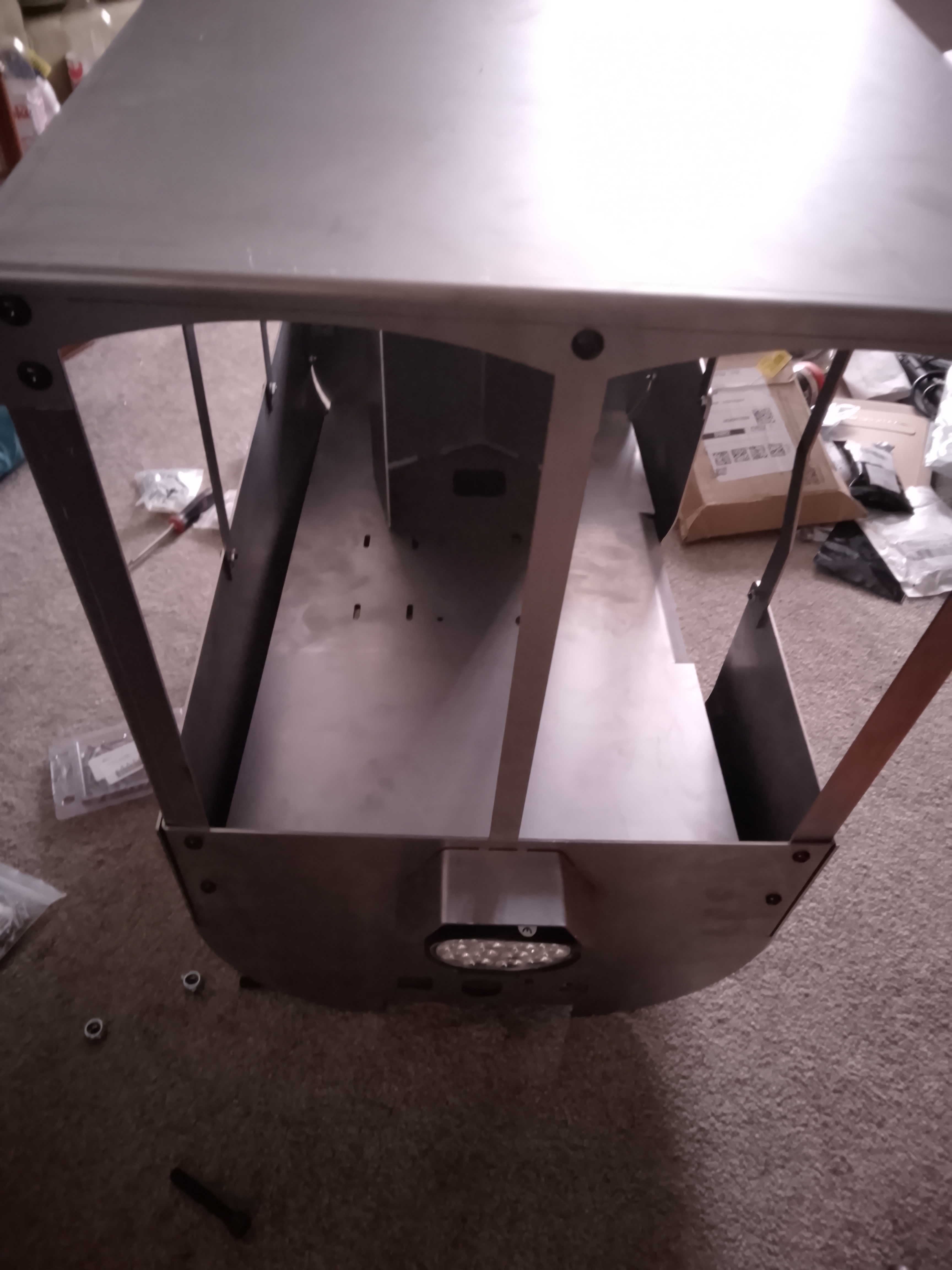

� False Floor Conceals wiring and electronics while maintaining a clean
interior.
� Corner Supports & Doorway Supports: Reinforce the body structure
and maintain alignment.
� Light Surrounds: Decorative bezels for lighting fixtures.
� Assembly Drawing: The final drawing shows an exploded view of the
tram with all 16 parts listed, confirming the modular and well
documented nature of the build. Chimney is listed as an example as
not a lasercuttable item .
Power System
The tram can be powered by an electric motor, offering reliable and quiet
operation. The motor is mounted centrally, making it ideal for garden railway
use.
Important Notes
No wheels, axles, bearings, or drive components are included
Designed for use on slow-speed tracks
License Terms
For personal, non-commercial use only
You may build as many as you like for yourself
Resale of plans, files, or completed kits is not permitted
For commercial licensing or custom designs, please contact Neil Hancox
