Build Your Own 5 Inch Gauge Locomotive
Build Your Own 5 inch Gauge Loco Frame & Body Kit Digital Plans + STL Files

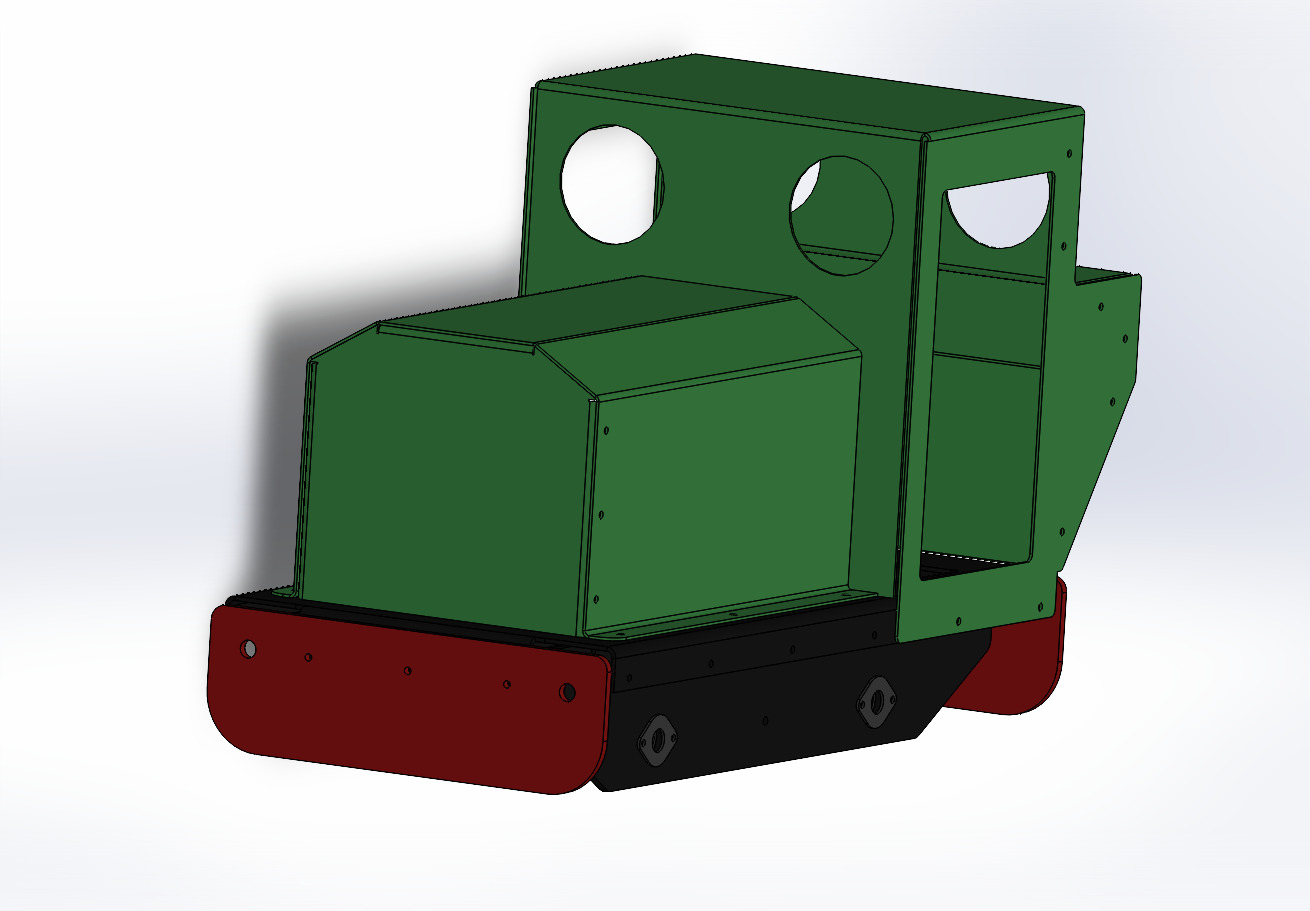

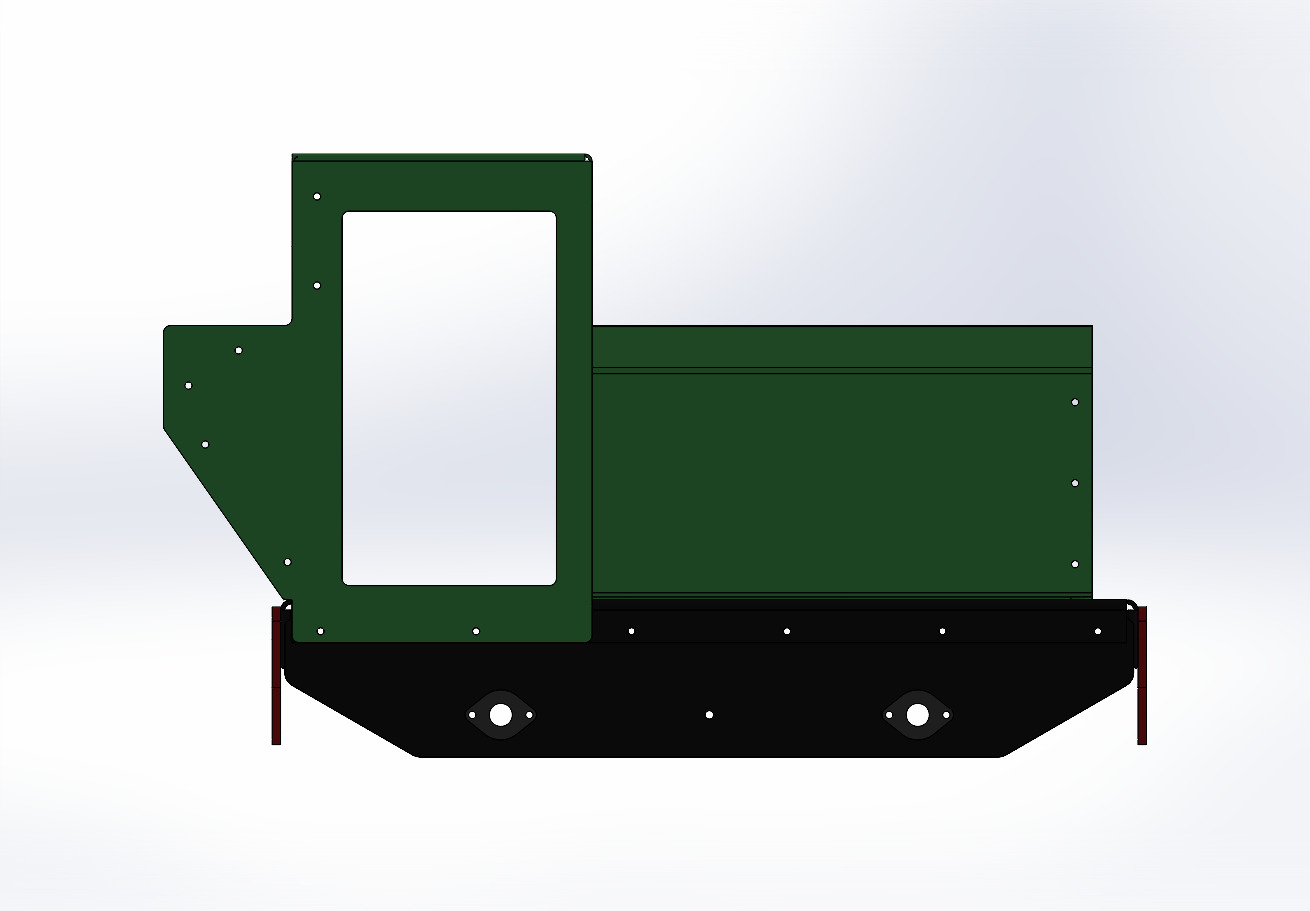

Create your own 5 inch gauge locomotive frame and body with this easy-to-build, bolt-together design. Perfect for hobbyists, model engineers, and railway enthusiasts, this kit is kept as simple as possible for home workshop assembly.
Please note, This kit provides the frame and body only. There is no drive system, wheels, or axles included.
What You will Get
Digital Download
PDF & DXF Plans – ready for laser cutting, fabrication, or reference
STL Files for 3D printing selected cosmetic parts
Drawings for
Chassis & frame
Buffer beams
Simple body shell
Lasercut Kit will supply above parts
Key Features
Designed specifically for 5 inch gauge track
99% bolt-together construction minimal tools needed
No welding required
Ideal for beginners and experienced builders alike
Compatible with laser-cutting and outsourced fabrication services
Important Notes
For the digital download only – no physical items will be shipped
No wheels, axles, bearings, or drive components are included
Designed for light use on slow-speed tracks
License Terms
For personal, non commercial use only
You may build as many as you like for yourself
Resale of plans, files, or completed kits is not permitted
For commercial licensing or custom designs, please contact Neil Hancox
