Build Your Own 5 Inch Gauge Locomotive
Digital Download has No Physical Items Included

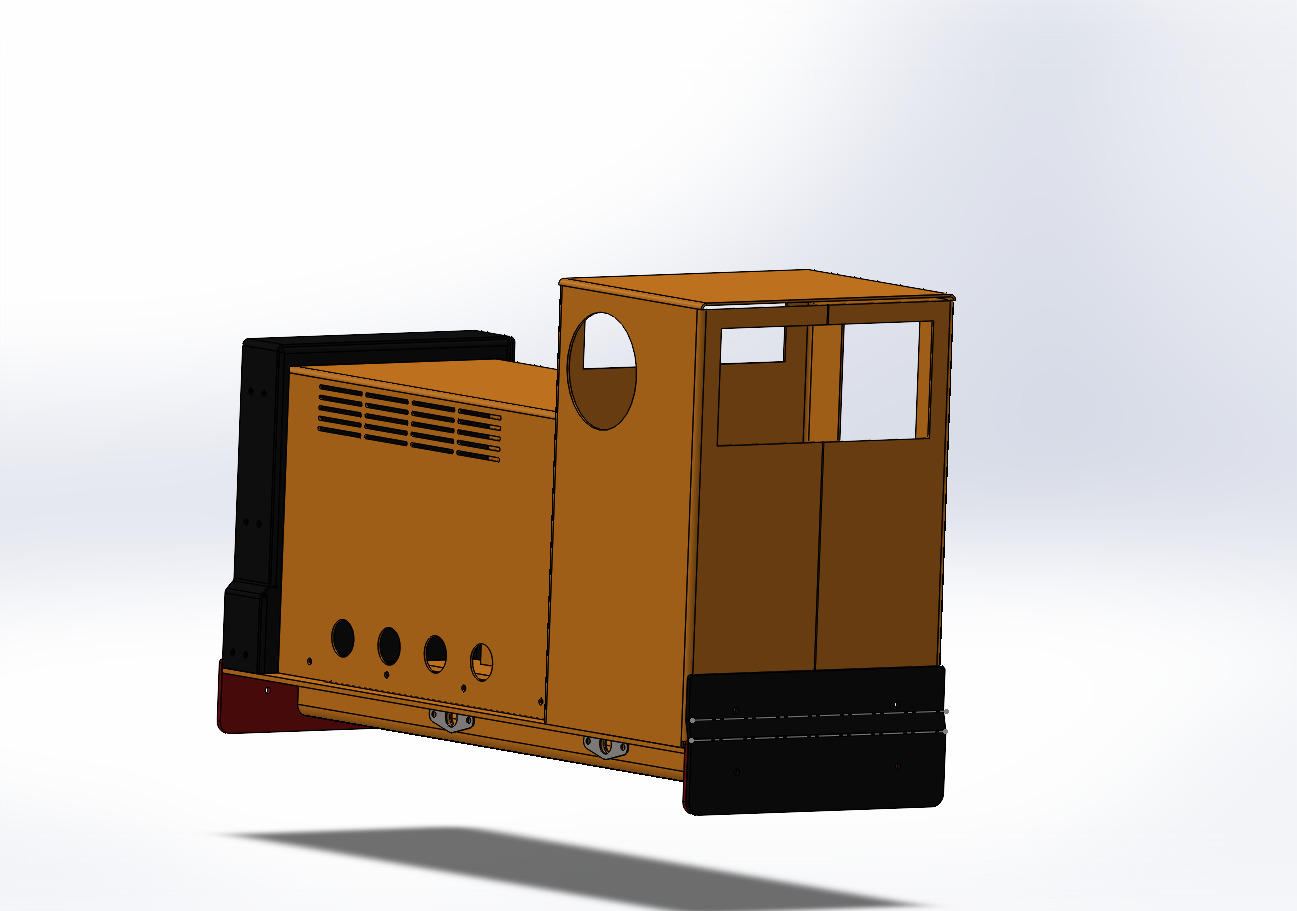

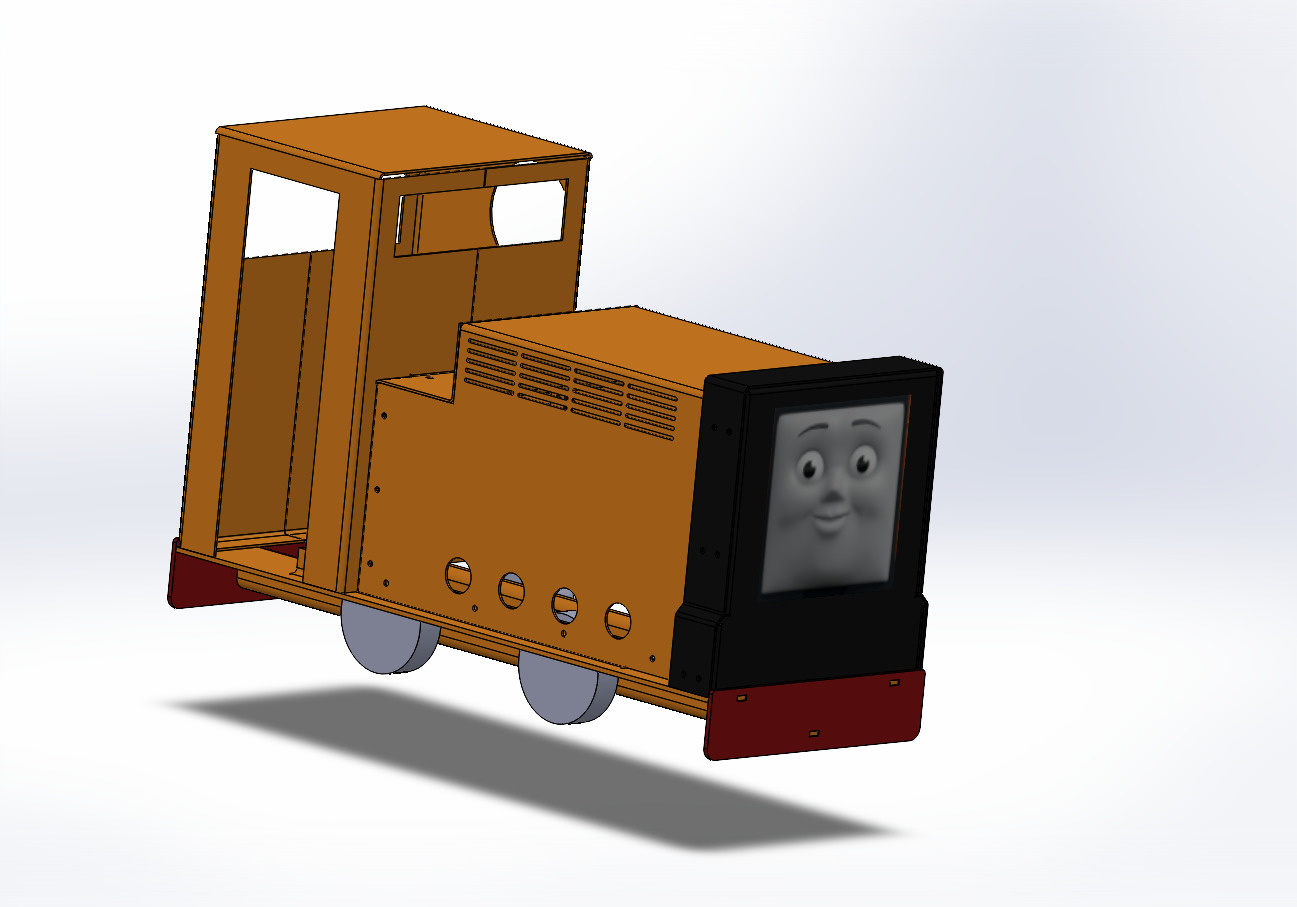

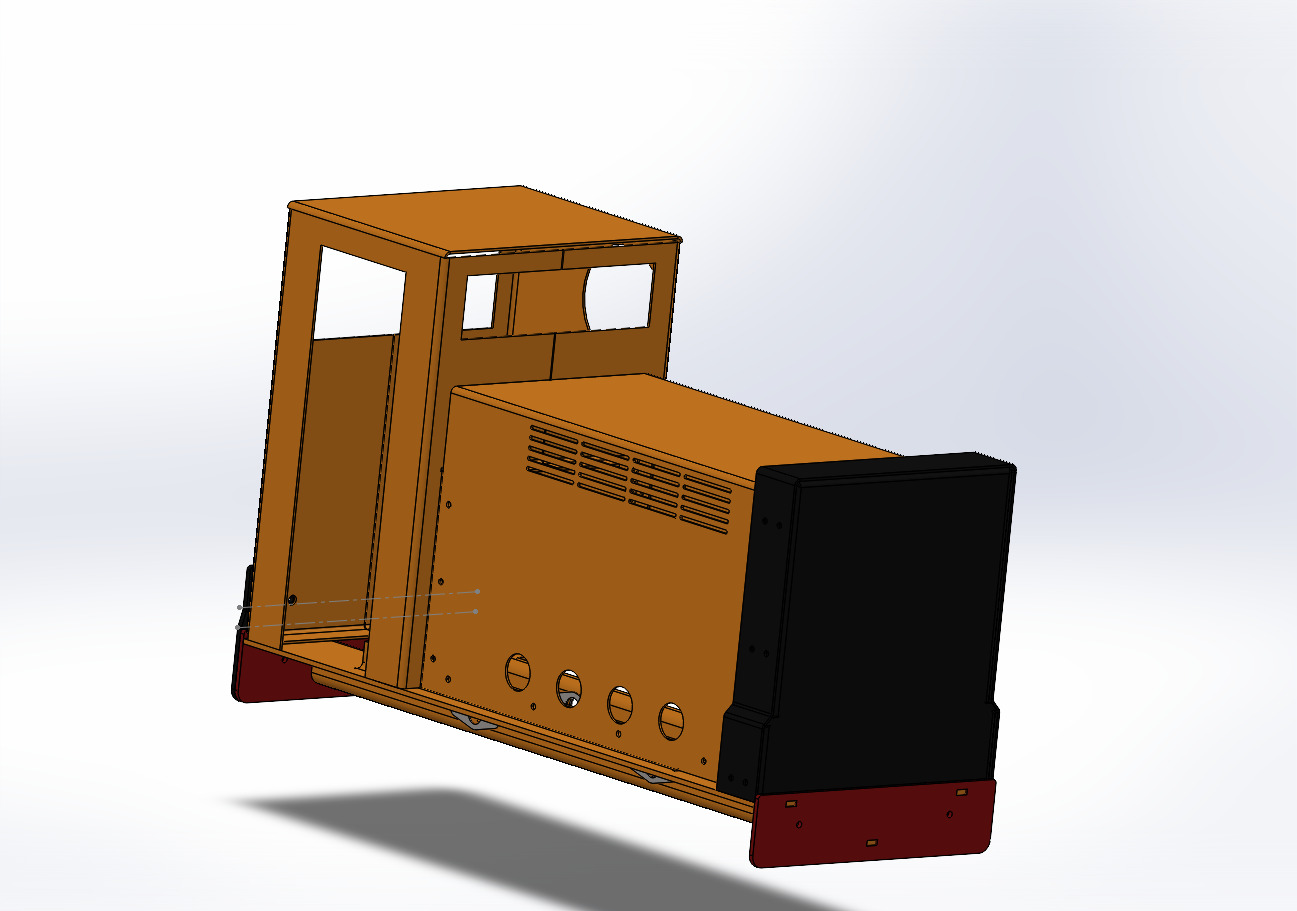

Bring your own 5 inch gauge locomotive to life with this detailed, bolt-together body and chassis design based on the iconic Rusty outline. This is a basic, non-suspension build designed for hobbyists and makers who want to fabricate their own loco using laser cut and bent metal parts.
What is Included In Digital Download
STL files for 3D reference or optional printing
DXF files ready for laser cutting
PDF drawings for reference and fabrication
What is Included In Lasercut Kit

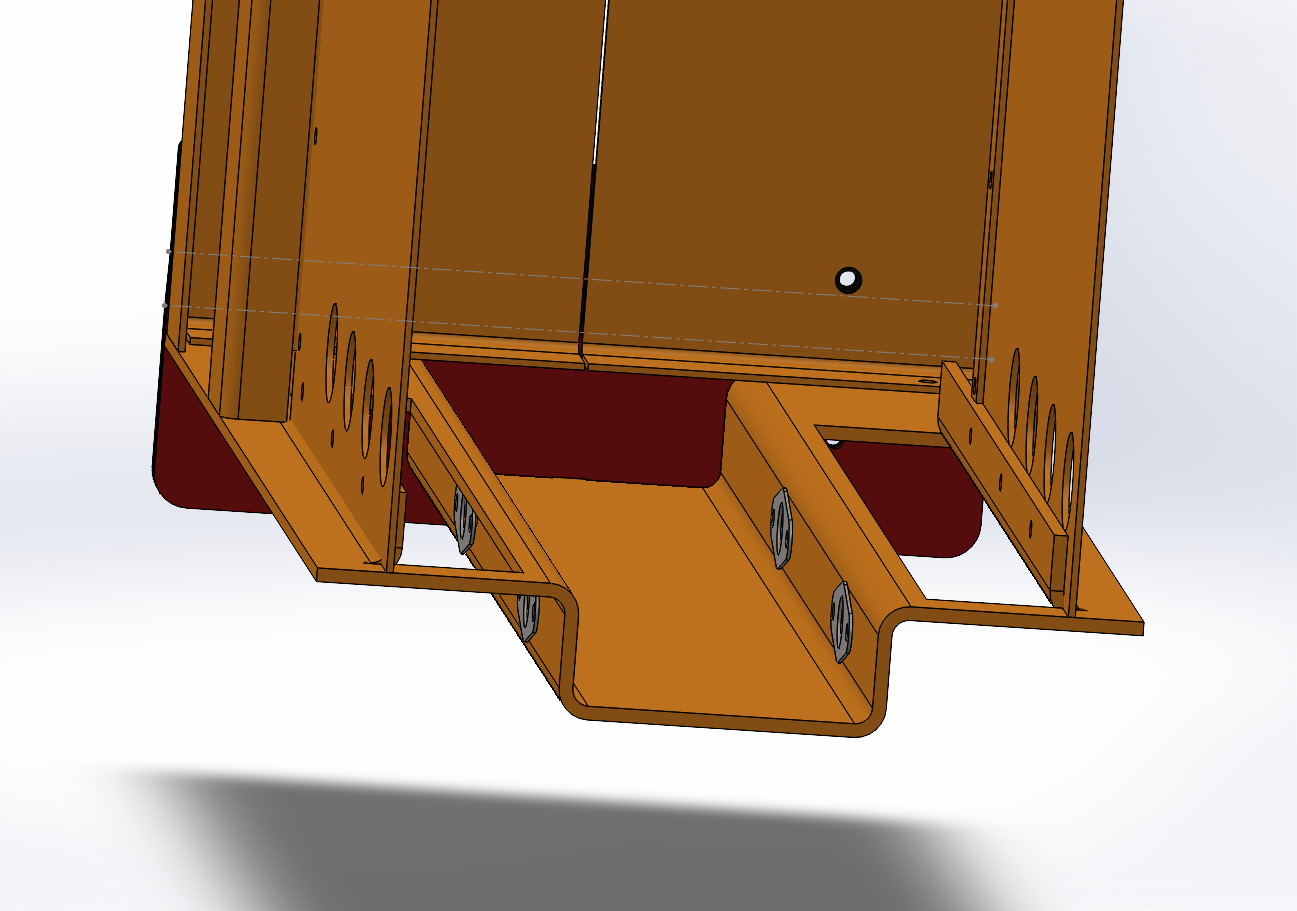

Body and Chassis
2 Bodies available I will message and ask which is needed A flat Bonnet Or bonnet with a notch in it
Key Features:
Designed for 5-inch gauge track
Bolt-together construction (except buffer beams)
Two bonnet versions included:
• Flat top
• Notched rear (in front of cab)
No suspension – simple and robust
Ideal for custom drivetrain and electronics setups
What You’ll Need (Not Included):
Wheels (3.5 inch diameter recommended)
Axles, drivetrain, and electronics
Couplings and buffers
4 × 6701-2RS Deep Groove Ball Bearings (Z2, 12mm × 18mm × 4mm)
Perfect For:
Hobbyists and model engineers
Makers with access to laser cutting and bending services. I use Qimtek LTD
Builders looking for a flexible platform to add their own power system
Instant Download
Once purchased, you’ll receive a ZIP file containing all STL, DXF, and PDF files.
Note: This is a digital product only. No physical parts, wheels, motors, or electronics are included.
Kit includes the Body and Chassis
parts not included parts, wheels, motors, or electronics.
License Terms
For personal, non-commercial use only
You may build as many as you like for yourself
Resale of plans, files, or completed kits is not permitted
For commercial licensing or custom designs, please contact Neil Hancox
